MAGNUM FORCE HIGH PRESSURE ARCH
PROVIDES COMPLETE RINSING POWER WITH LESS WATER

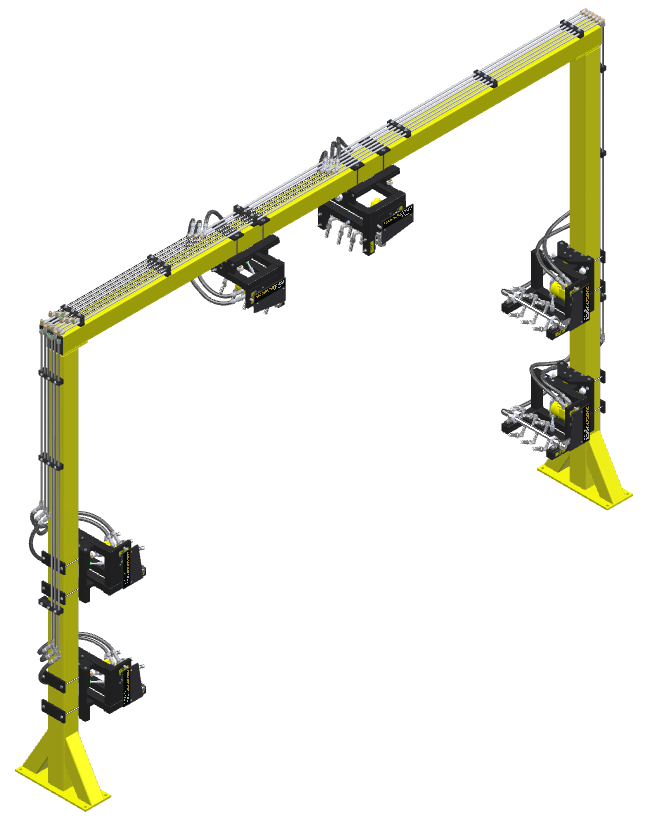

The Magnum Force HP Arch’s oscillating and pivoting heads provide duel action side-to-side and up-and-down action, to reach the entire surface of the vehicle. The 1 GPM nozzles provide the ultimate in high pressure rinsing, even at the fastest of line speeds. Requires very little maintenance, and uses very little tunnel space.
- Available in three, five or six head configurations
- Dual side-to-side and up-and-down oscillating flip action reaches all areas
- Shipped complete with hydraulic lines and spray heads attached to posts
- Minimal space requirements—quick and easy to install at new or existing sites
- Built to MacNeil’s high quality standards for maximum durability
FEATURES
- Aluminum frame construction
- Easy to re-position spray heads with replaceable inserts
- All stainless-steel hardware
- Corrosion-resistant Pro-Coat finish available in silver, red, black, blue or yellow.
TECHNICAL DATA
Options:
- Available with three, five, or six spray heads
- Three head: M2100RD or M2000R Pumping Station required
- Five and six head: M3500R Pumping Station required
Pneumatics:
- 3/8″ (9.525mm) line
- 0.5 CFM (0.014 cum/Min)
- 60 PSI (4 BAR)
Water:
- Three head: 20 GPM (75.7 LPM)
- @ 1000 PSI (69 BAR)
- Five and six head: 34.5 GPM
- @1000 PSI (69 BAR)
- 1″ high pressure system line
Electrical:
- 24 VAC or 110 VAC control voltage
- 1 phase – 60/50 Hz
Hydraulics:
- Three head: 4 GPM (15 LPM)
- 800-900 PSA (55-62 BAR)
- Five and six head: 6 GPM (22.5 LPM)
- 800-900 PSI (55-62 BAR)
